Product Information

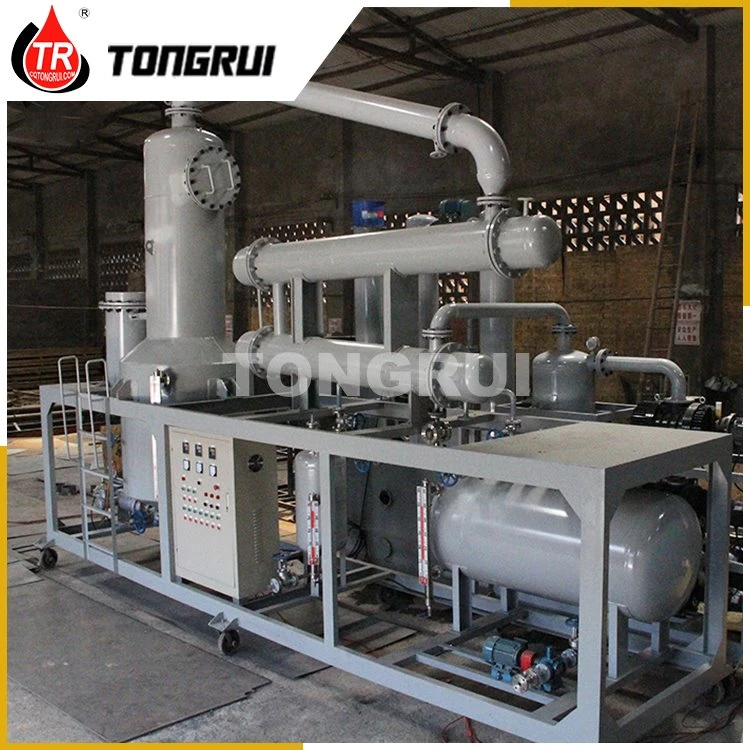

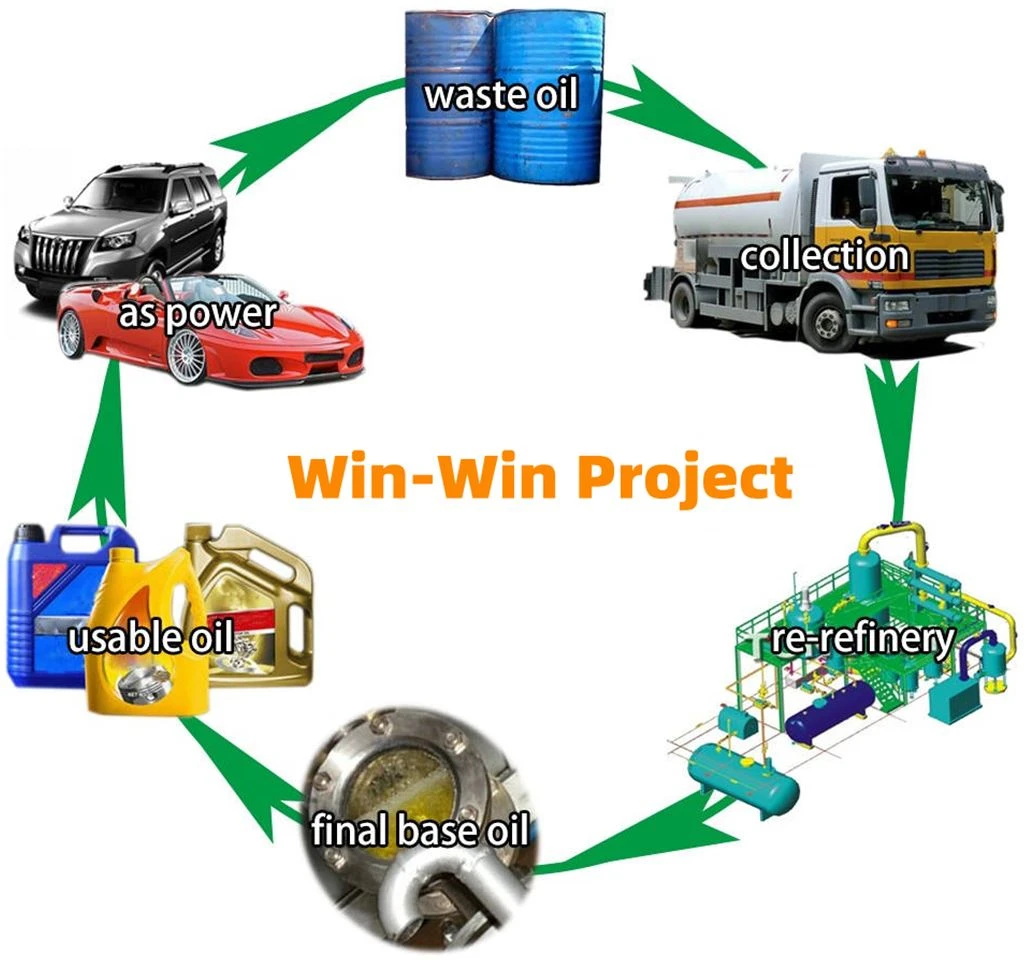

DIR waste oil recycling machine can be applicable to all kinds of different feed stock , typically as used engine oil,heavy fuel oil,hydraulic oil,gear oil, transmission oil etc. to convert those used lube oil into high quality base oil SN150-SN500 as well as gasoline and asphalt. The base oil can be used as the raw materials of kinds of usable oil, as new engine oil, engine oil, new lubricating oil and so on.
Technical Parameter
Product Specifications | |||||||||
Model | Capacity | Vacuum set | Oil pump | Total power | Dimension/m | ||||
Gas inlet | Gas outlet | Vacuum set | Oil inlet | Oil outlet | Pump set | ||||
DIR-1 | 1 T/D | 150 | 50 | 16 | Φ25 | Φ25 | 8 | 102 | 6.637 |
DIR-2 | 2 T/D | 150 | 50 | 19.5 | Φ33 | Φ33 | 8.5 | 112 | 7.537.2 |
DIR-3 | 3 T/D | 200 | 50 | 22 | Φ42 | Φ33 | 12 | 134 | 847.5 |
DIR-4 | 4 T/D | 200 | 50 | 25.5 | Φ42 | Φ33 | 14.5 | 143 | 8.54.57.5 |
DIR-5 | 5 T/D | 250 | 50 | 29 | Φ48 | Φ42 | 19 | 145 | 1067.5 |
DIR-6 | 6 T/D | 250 | 50 | 33.5 | Φ48 | Φ42 | 20.5 | 147 | 116.57.5 |
DIR-8 | 8 T/D | 250 | 80 | 36.5 | Φ64 | Φ48 | 27.5 | 180 | 1377.5 |
DIR-10 | 10 T/D | 250 | 80 | 40 | Φ64 | Φ48 | 28.5 | 183 | 1587.5 |
DIR-20 | 20 T/D | 300 | 80 | 45.5 | Φ64 | Φ48 | 36 | 220 | 188.57.5 |

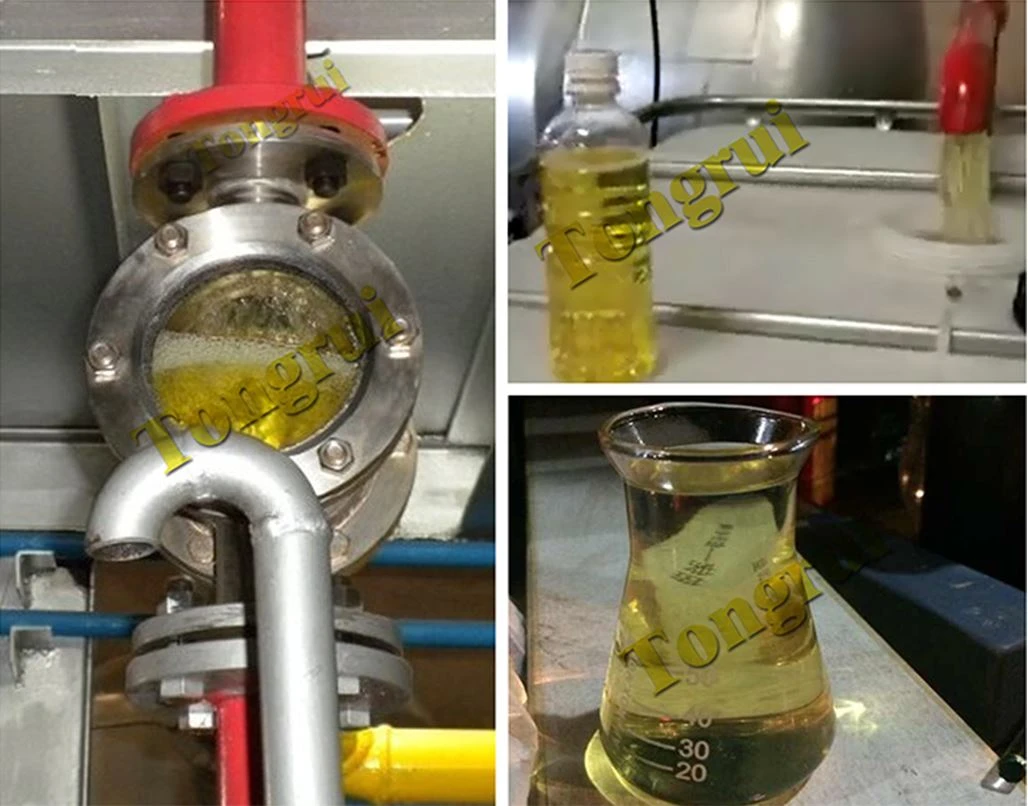

Oil analysis after treatment | |||||||||
Item | Unit | Heavy base oil | Light base oil | ||||||
Appearance | -- | transparency | transparency | ||||||
Color | Less than or equal to | 1.5 | 1 | ||||||
Viscosity | （40 degree ）m㎡/s | 49.57 | 26.86 | ||||||
Viscosity index | Greater than or equal to | 96 | 96 | ||||||
Anti-oxidation | 150 degree ,min Greater than or equal to | 180 | 180 | ||||||
Demulsification | 54 degree min | 5min | 5min | ||||||
Flash point(open) | degree Greater than or equal to | 228 | 224 | ||||||
Pour point | degree Less than or equal to | -12 | -16 | ||||||
Neutraization value | mgKOH/g Less than or equal to | 0.02 | 0.02 | ||||||

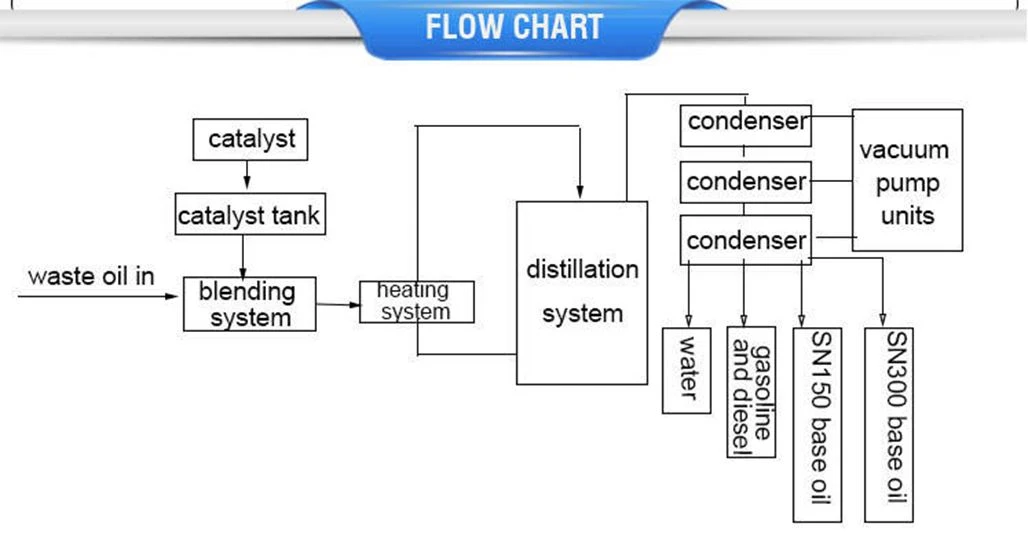

Working principle
our company researches the new waste oil vacuum distilling machine (DIR waste oil recycling machine) from 2005,We're the first factory to produce the vacuum oil distillation plant and with ten years of improvement, our technology is very mature, it is special for distilling and regenerating the black waste lube oil, including waste engine oil, lube oil, hydraulic oil, gear oil,dirty diesel oil, mixed oils etc. This equipment adopts physicochemical way to polymerize, passivity, absorb, eliminate impurities and harmful contaminants. DIR waste oil distillation machine heat the waste oil to (from 110 degree to 350 degree ) different temperature under high vacuum condition, making Hydrocarbon molecules break out, and re-order combination, forming diesel oil, lubricating base oil etc. This newest technology machine is very suitable for the small oil refinery company, also for the small oil company who want to make the oil by self.
Why to choose us!
1.High efficient and recovery rate
black engine oil can be got about 80 percent -85 percent yellow base oil, it can be changed into kinds of usable oil with adding some compound additives
Gasoline and diesel oil can be got about 6 percent -7 percent , it can be used as fuel
Waste oil residue: 6.5 percent , it can be used as fuel with some diesel
Water is about 1.5 percent , it can be put into the water pool as cooling system for the machine
2.High safety
One helpful waste oil recycling machine can not only be profitable , but also safety needs to be guranteed. The yellow base oil can be got in negative pressure by our DIR series machine with indirect heating. Most companies choose direct heating to cut their cost. But it is not safety.
3.High Vacuum
Vacuum pump unit sets, at least three vacuum pump unit offered.
